To make the material handing more easier----Haizhili
7 Years
| Ask Lasest Price | |
| Brand Name : | Haizhili |
| Model Number : | WB15 |
| Certification : | CE, ISO |
| Price : | USD 1400 - 2000 per set |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 500 sets per month |
| Delivery Time : | In 15 days after receipt of payment |
Hot selling excellent quality 1500kg steel/aluminum hydraulic van truck tail lift
Truck tail lift
1. Low poeder consumption, high efficiency.
2. Capacity: 1.5Ton
3. Hydraulic and electric system
Description of hydraulic tail lift:
Hydraulic truck tail lift is characterized by a large carrying capacity and low failure rate, applied to
various van trucks, open wagons and special transport vehicles of postal service, banks, and so on.
It is the widely used structural form.
Hydraulic tail lift can help you in carrying cargo in or out of your car/truck, save your effort, make
your transportation more effective.
Specification of hydraulic tail lift:
| Model | Capacity(kg) | Height form vehicle box to ground (mm) | Standard tail lift length(mm) | Standard tail lift width(mm) | Motor | Motor power(kw) | System working pressure | Average lifting speed (Mmm/sec) | Net weight (kg) |
| WB15 | 1500 | 700-1550 | 1800-2400 | 1800/2000 | DC12V-24V/100AH-160AH | 2.2 | <16mpa | 70mm/sec | 520 |
| WB20 | 2000 | 700-1550 | 1800-2400 | 1800/2000 | DC12V-24V/100AH-160AH | 2.5 | <16mpa | 70mm/sec | 540 |
Feature of hydraulic tail lift:
1. Save loading time
2. Cheaper than other style
3. 4 or 5 cylinders support , more stable
4. Simple structure
5. Easy to be customized
6. Popular, and easy to get the service

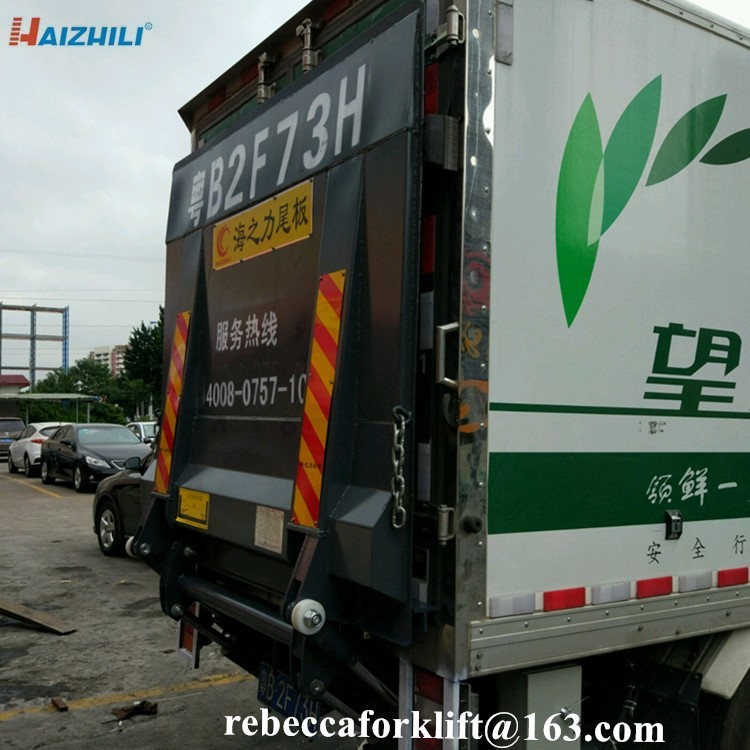

Photo of hydraulic tail lift:
About Haizhili
Haizhili Machinery Co., Ltd. was founded in 1997. Haizhili is a high tech enterprise of research and
development, manufacture, sales and after-sales service of material handle equipments. With 2
production bases, covers an area of 20000 square meters, Haizhili has more than 500 experienced
technicians. We can provide our customers efficient, safe, comprehensive solution for aerial work,
cargo lifting, warehousing & logistics transportation.
Haizhili has hundreds of stores, transit warehouses and after-sales service points in China. Haizhili
also has thousands of distributors. No matter where you are, you can get our professional after-sales
service in time in China. Now Haizhili is expanding our business to the whole world. With perfect
pre-sale service, in-sales service, after-sales service, haizhili has earned good reputation and trust
from clients home and abroad.
Haizhili has always followed a policy of "Quality first, Technology leading, Cooperation and
Win-win ”. Haizhili has been developing itself by researching on new technology and new products,
offering superior products and service for customers. If you are looking for smooth business, profit
and success, we are the right supplier. With good quality and professional service, we have fully
confidence that Haizhili will be your best partner. We sincerely hope to cooperate with you for
win-win situation.
|
|
